SKU Kodu : T25921
Koleksiyonlar : Elektronik, Switch,
Teslim alım stok durumu yüklenemedi
Tüm Ürünler 17:00 kadar
Ücretsiz Kargo
Aynı gün kargo imkanıyla!
Özellikler
|
Model |
GS2048PS4 |
|
Sabit bağlantı noktası |
48 10/100/1000Base-T ports |
|
LED Göstergeler |
PWR, PoE, Link/Act LED |
|
Giriş Gerilimi |
100V~240V AC 50/60Hz |
|
Güç tüketimi |
750W (720W for PoE) |
|
CPU |
400MHz ARM Cortex-A9 |
|
DDR |
2G DDR3 800MHz |
|
RAM |
256Mbits |
|
Flash Bellek |
64Mbits |
|
Çalışma sıcaklığı |
0°C~40°C |
|
Depolama sıcaklığı |
-40°C~70°C |
|
Bağıl nem |
5%~95% (non-condensing) |
|

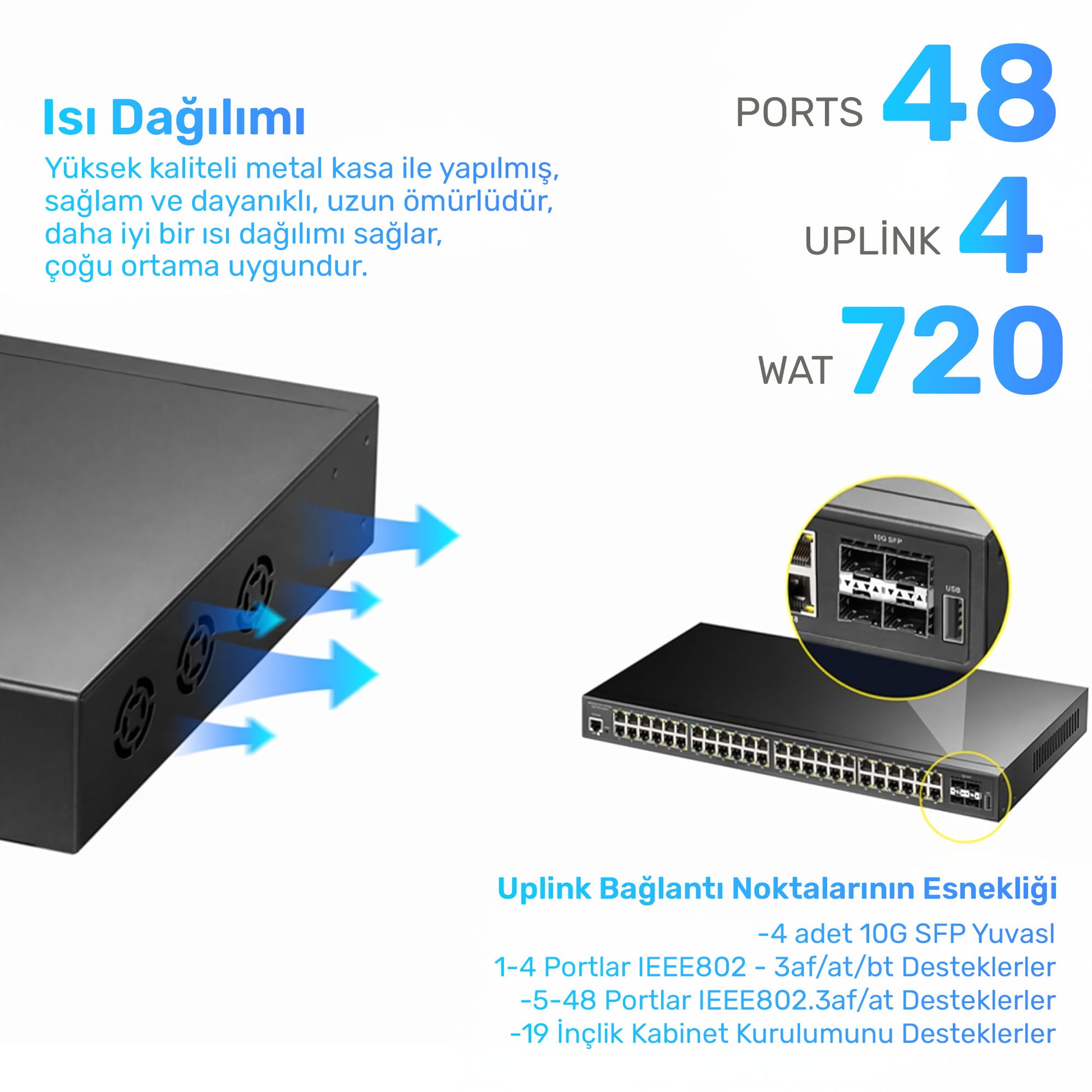

Termal Yöntemler |
Built-in FAN |
|
PoE |
|
|
48 PoE ports. |
|
|
PoE Standard |
IEEE 802.3af/at/bt |
|
Pin Atama |
IEEE 802.3af/at/: 2 pairs |
|
PoE Yönetmek |
Destekler Port-base PoE status view and control |
|
L2 Switching |
|
|
Anahtarlama Kapasitesi |
176Gbps |
|
Packet Buffer |
16Mbits |
|
Throughput |
130.944Mpps |
|
Port yapılandırma |
|
|
Port auto-negotiation |
Destekler |
|
Port flow control |
Destekler full duplex IEEE802.3x flow control |
|
Broadcast storm control |
Destekler broadcast, multicast, DLF packet rate limit |
|
Port Mirroring |
Destekler |
|
Port isolation |
Destekler |
|
Port Self-loop Detection |
Destekler |
|
Link Aggregation |
Supports up to 128 aggregation groups, each group supports up to 8 ports |
|
Jumbo Frame |
Jumbo packets up to 12K bytes |
|
Redundant port |
Support |
|
MAC yapılandırma |
|
|
MAC address table |
32K |
|
MAC address table management |
Destekler |
|
Static MAC address |
Destekler |
|
MAC Address Binding |
Destekler |
|
MAC Address Filtering |
Destekler |
|
MAC Address Learning control |
Control number of port-based MAC address learning |
|

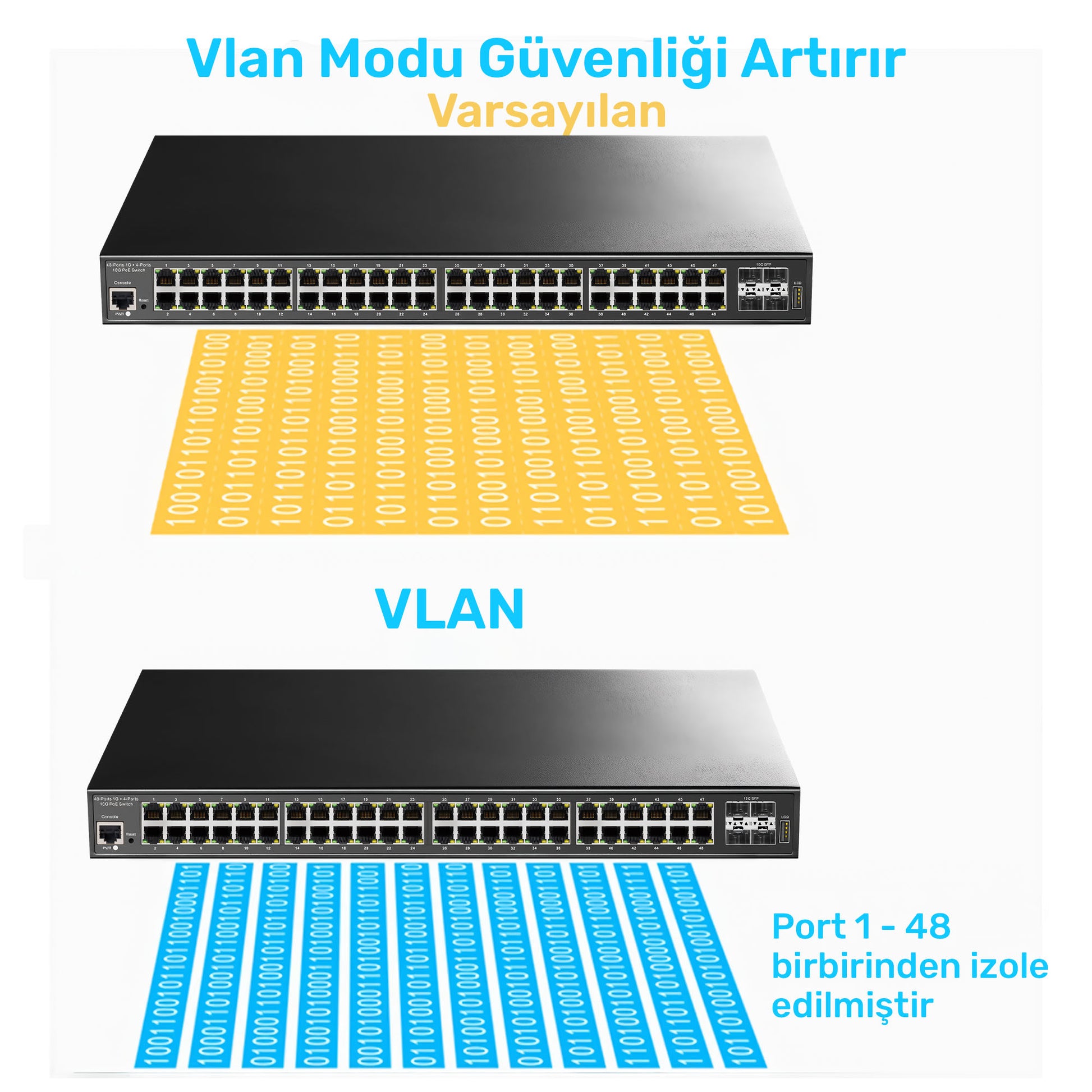

VLAN yapılandırma |
|
|
Number of VLANs |
4K |
|
Port-based VLAN |
Destekler |
|
802.1q VLANs |
Destekler |
|
MAC-based VLAN |
Destekler |
|
IP-based VLAN |
Destekler |
|
Protocol-based VLAN |
Destekler |
|
Voice VLAN |
Destekler |
|
VLAN mapping |
Destekler |
|
QinQ |
Destekler |
|
Reliability Protocol |
|
|
Spanning Tree Protocol |
Destekler STP/RSTP/MSTP |
|
EAPS Protocol |
Destekler |
|
ERPS Protocol |
Support G.8032/Y.1344 |
|
LLDP |
Support LLDP & LLDP-MED |
|
UDLP Protocol |
Fully compatible with CISCO's UDLD protocol |
|
VLLP |
Destekler , Use with VRRP routing |
|
Routing |
|
|
ARP |
Destekler static and dynamic ARP |
|
Static Routing |
Destekler |
|
VLAN interface |
Support 32 VLAN interfaces |
|
L3 routing protocol |
|
|
RIP |
Destekler RIP v1/v2 |
|
OSPF |
Destekler OSPF v2 |
|
Policy Routing |
Destekler |
|
VRRP |
Destekler |
|
Multicast functions and protocols |
|
|
Statik Çok Noktaya Yayın MAC Adresi |
Destekler |
|
IGMP SNOOPING |
Destekler IGMP SNOOPING v1/v2/v3 |
|
MVR |
Destekler |
|
GMRP |
Destekler |
|
ACL access control list |
|
|
ACL Based on Standard IP |
Destekler |
|
ACL Based on Extended IP |
Destekler |
|
ACL Based on MAC IP |
Destekler |
|
ACL Based on MAC ARP |
Destekler |
|
ACL Port Filtering |
Destekler |
|
ACL Based on Time |
Destekler |
|
QoS |
|
|
Number of Port Queues |
8 |
|
Queue Scheduling Algorithms |
Destekler WRR, RR, WDRR, SP |
|
Classification Based on Port |
Destekler |
|
Classification Based on 802.1p |
Destekler |
|
Classification Based on DSCP |
Destekler |
|
Classification Based on ACL |
Destekler |
|
QoS Policy |
Destekler mapping of different data streams to different queues |
|
DHCP |
|
|
DHCP Client |
Destekler |
|
DHCP Snooping |
Destekler |
|
DHCP Relay |
Destekler |
|
DHCP Server |
Destekler |
|
DHCP option 82 |
Destekler |
|
Security |
|
|
ACL |
Destekler Standard IP / Extend IP / MAC IP / ARP |
|
Security Features |
Destekler MAC-based 802.1X authentication |
|
Self-protection |
Destekler CPU Self-protection |
|

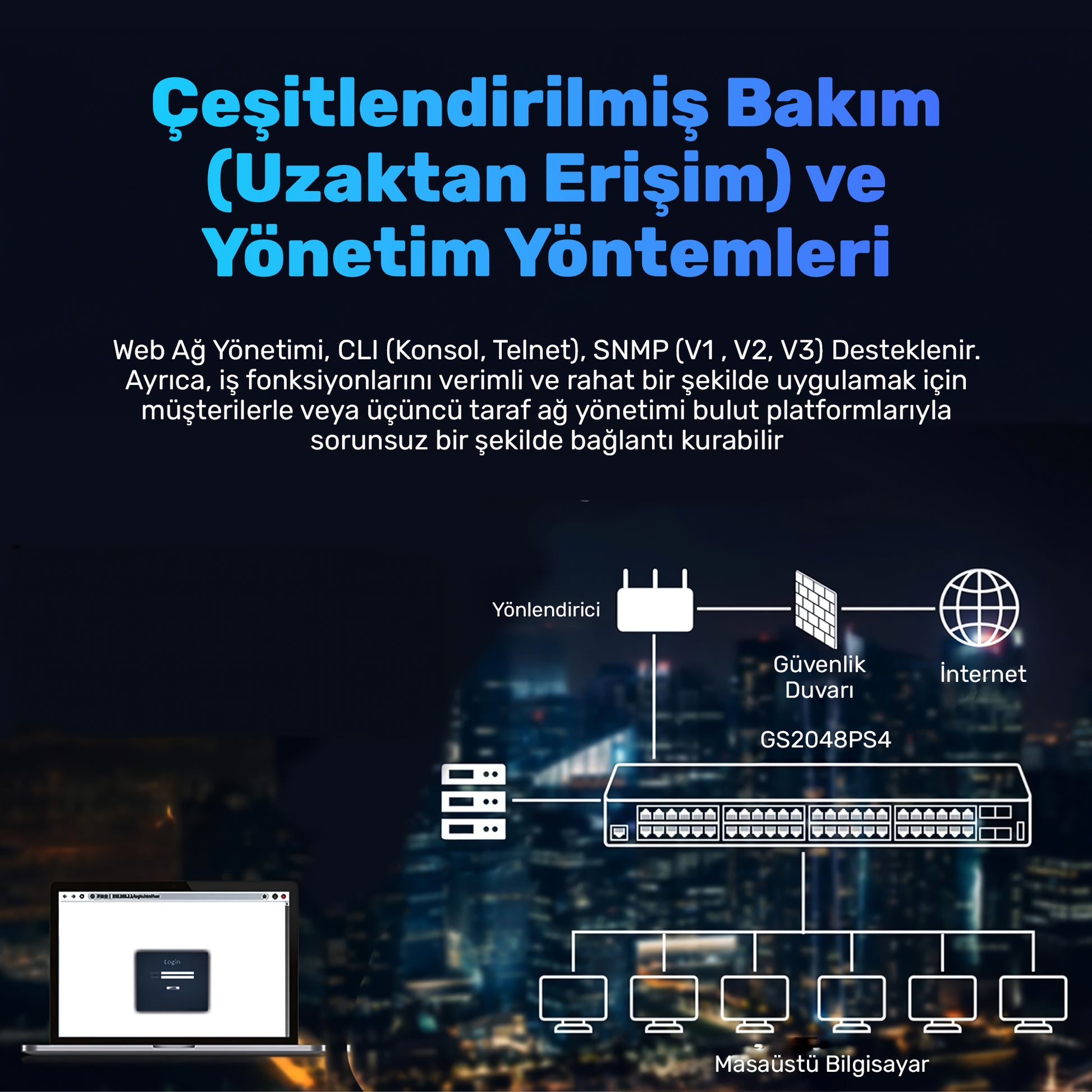

Management |
|
|
CLI |
Destekler CLI (Commend Line Interface) configuration mode |
|
Console |
Destekler Configuration via the console port |
|
Telnet |
Destekler Local/remote configuration via Telnet |
|
WEB |
Destekler Web management system |
|
SNMP |
Destekler System configuration with SNMP v1/v2c |
|
User Yönetmek |
Destekler Multi-user management |
|
System Log |
Destekler |
|
Configuration File Download/Upload |
Destekler Download/Upload configuration File via WEB/TFTP/USB |
|
Ürün yazılımını Yükselt |
Destekler Upgrade Firmware via WEB/TFTP |
|
Debug |
|
|
PING |
Destekler |
|
TRACEROUTE |
Destekler |
|
Telnet Client |
Destekler |
